X series
Tell us about your space and we reply with pricing and lead times.

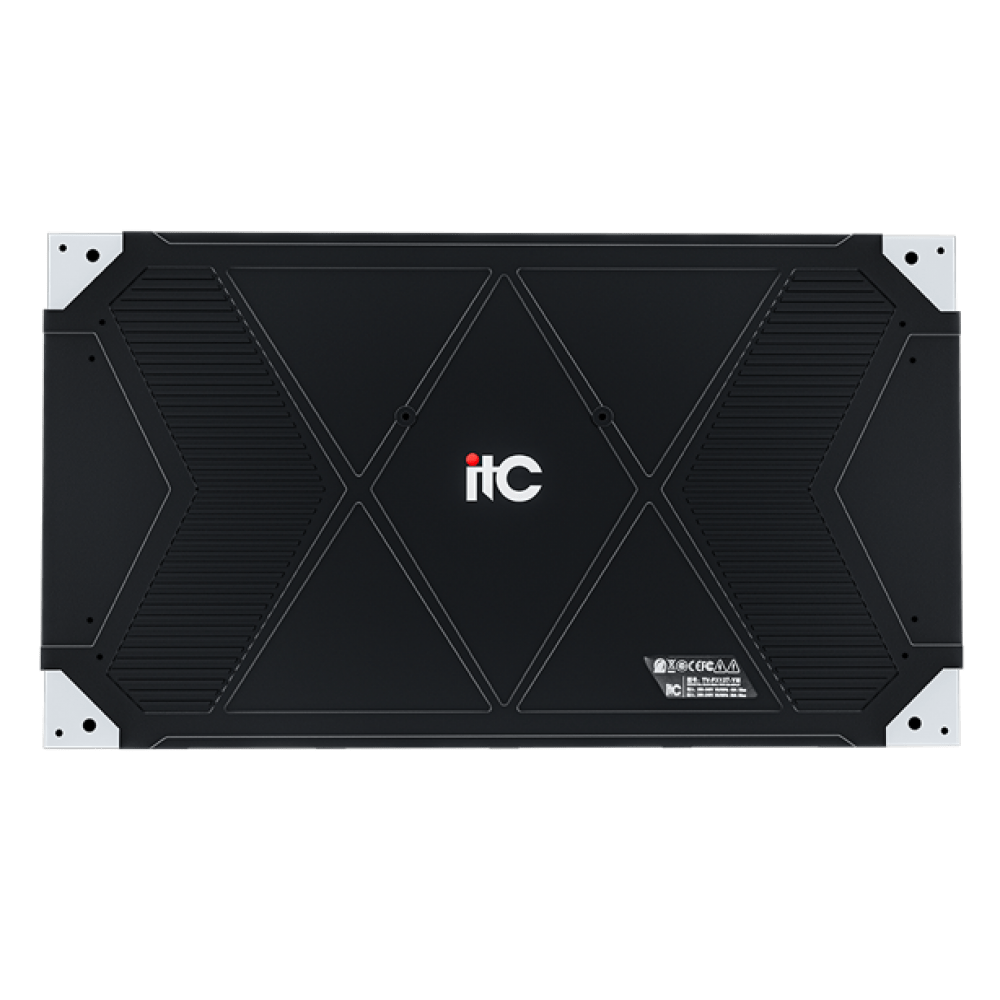

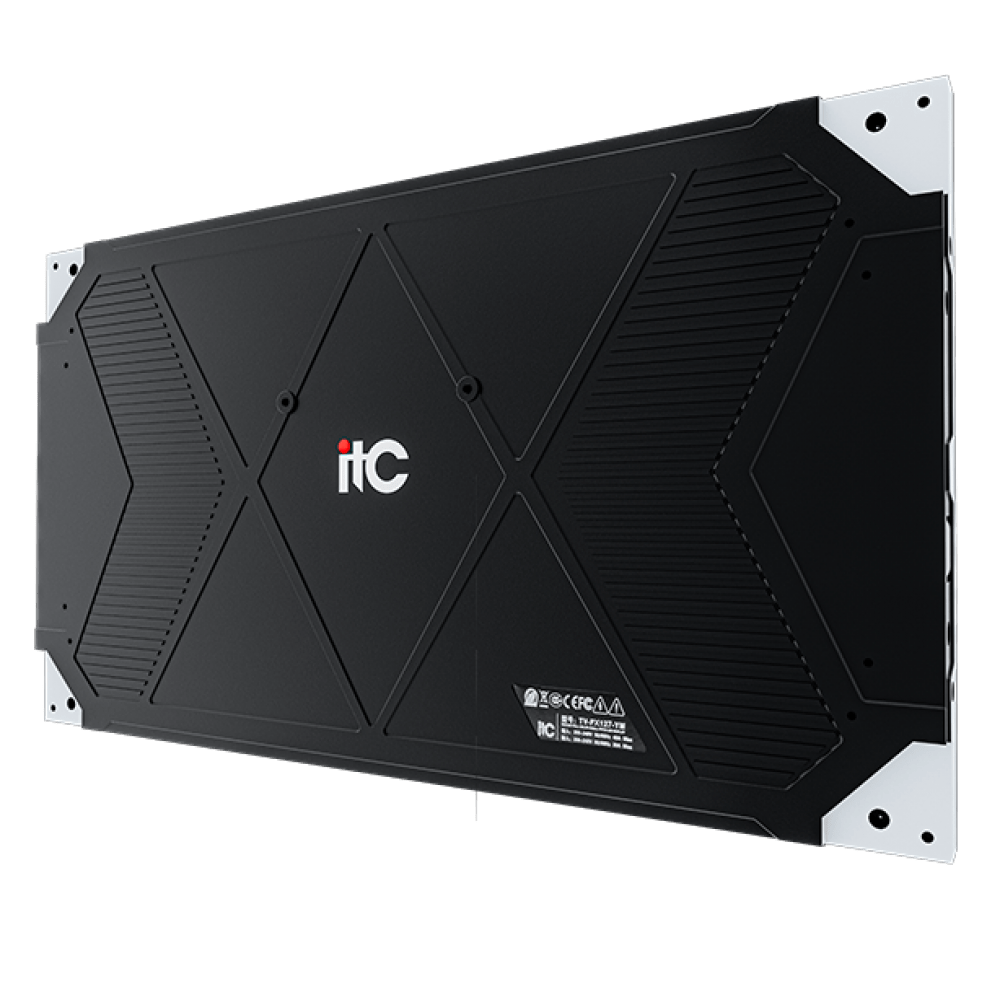

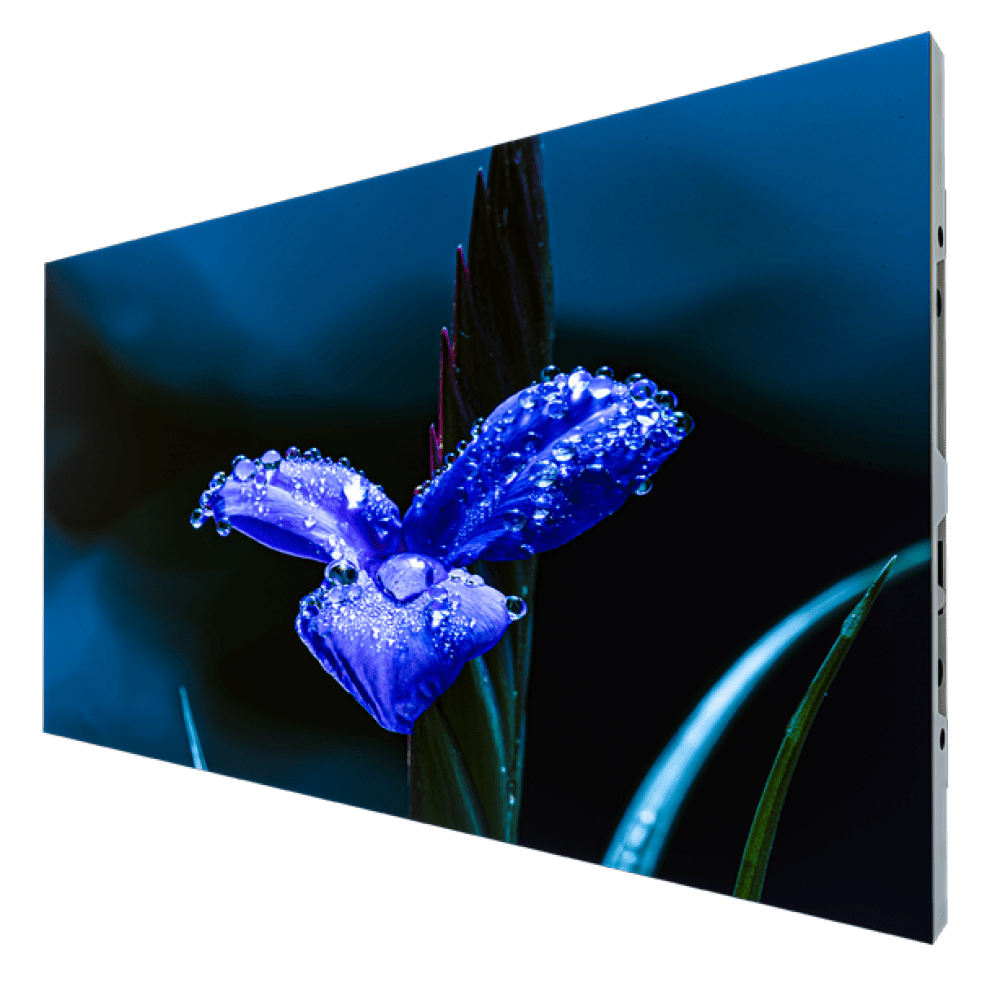

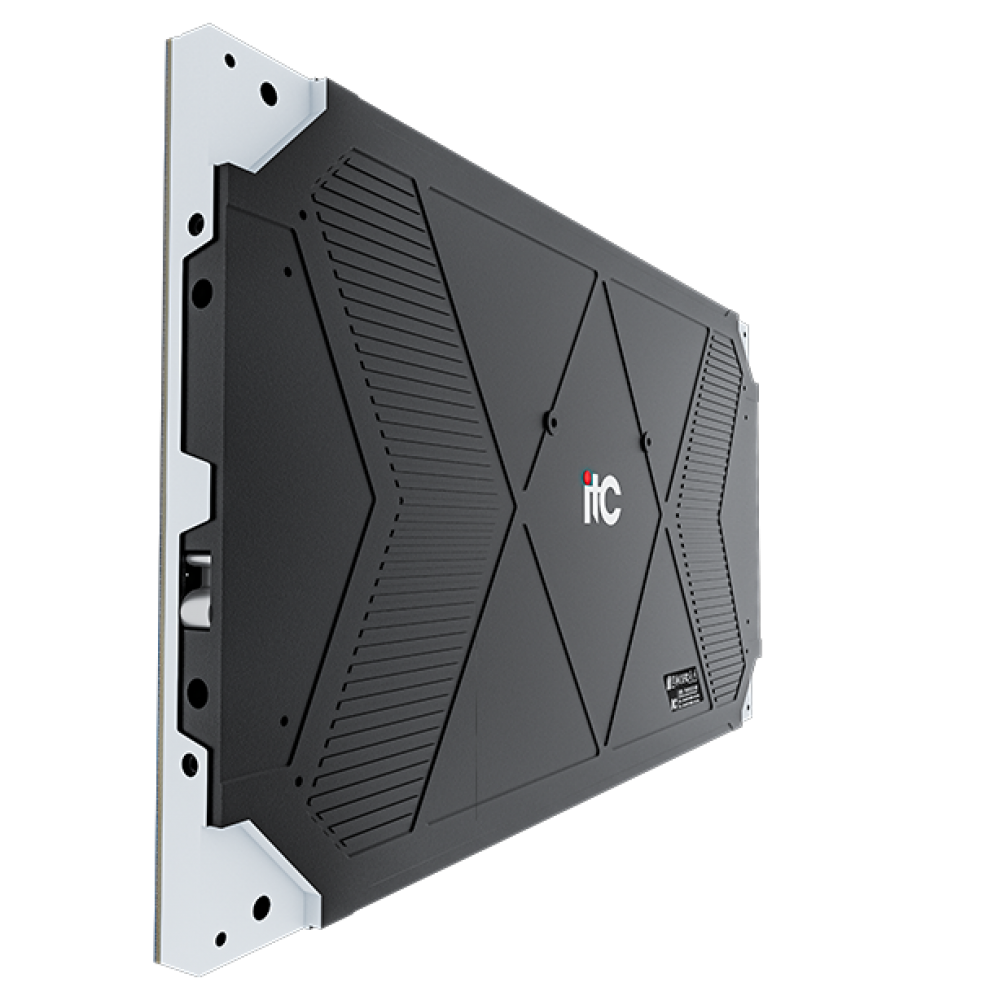

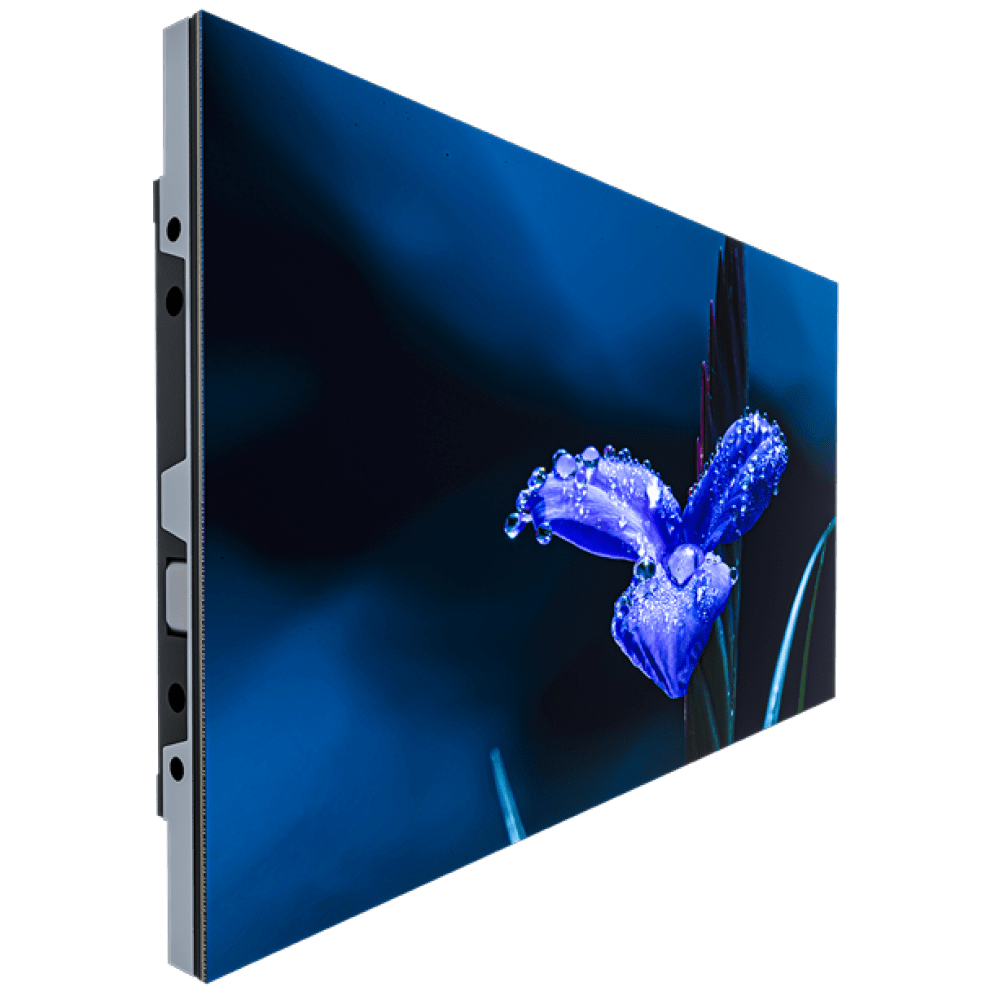

X series LED screen has the characteristics of seamless perfect display, long lifespan, fast refresh frame frequency, high refresh rate, good uniformity, wide viewing angle, high gray level and natural color reproduction. It is widely used for command & dispatch, security monitoring, video conference, demonstrations and various indoor conference rooms.
Specifications
| Model | X1.27 | X1.588 | X1.906 | X2.5 |
|---|---|---|---|---|
| LED encapsulation | 1010 black light | 1212 black light | 1515 black light | 2121 black light |
| Pixel pitch (mm) | 1.27 | 1.588 | 1.906 | 2.54 |
| Resolution | 619414 pixels/m² | 396424 pixels/m² | 275295 pixels/m² | 154853 pixels/m² |
| Panel resolution | 480×270 | 384×216 | 320×180 | 240×135 |
| Panel dimension (mm) | 610×343×33 | 610×343×33 | 610×343×33 | 610×343×33 |
| Brightness | 200~600CD/m² | 200~600CD/m² | 200~600CD/m² | 200~600CD/m² |
| MTBF | ≥10000H | ≥20000H | ≥20000H | ≥20000H |
